Lab / Pilot Extrusion Laminating Machine

Lab / Pilot Extrusion Coating & Laminating Machine

Introduction:

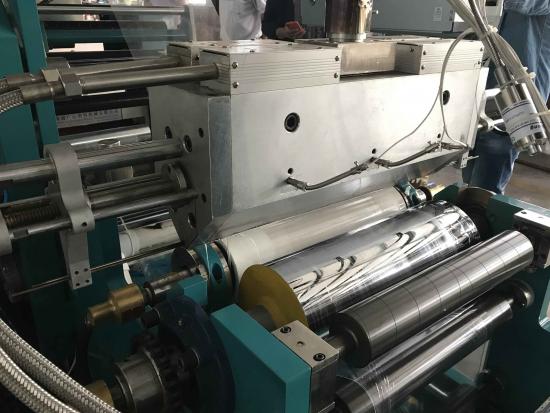

Our pilot scale extrusion coating & laminating machine is perfect for product development, product sampling and trial production run. The extruder has the flexibility for running PE, EVA, PLA polymer which works as bonding layer for various substrates. The system also can be used independently for three processes: coating, extrusion coating and extrusion laminating.

The extrusion laminating system minimize the traditional extrusion laminating line and make lab test available. We not only can test the new polymer of coating layer, but also the bonding performance between resin and substrate layer.

Application:

polymer coating performance tests

new products recipes research and development

optimize production process

small scale production for narrow width

Typical Specification:

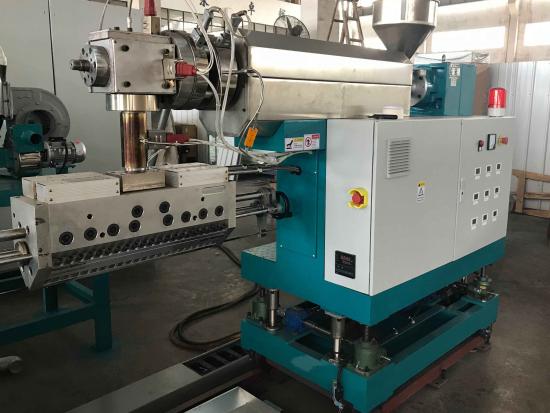

Screw Dia.: 35mm, 45mm, or else as per request

Resins: PE, EVA, PP, PLA, or PBS (laminating grade)

Product Width: 200-400mm

Speed: 10m/min, 30m/min or higher speed upon request

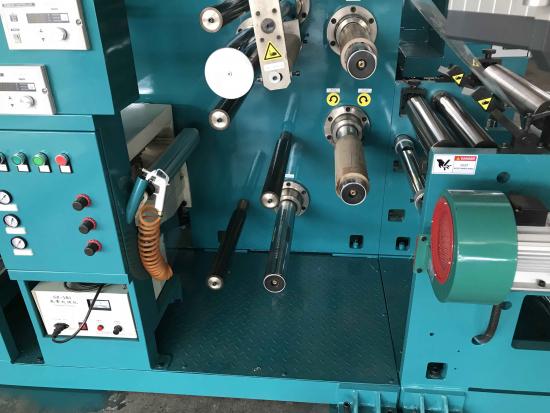

Unwinder: single 3” airshaft

Rewinder: single 3” airshaft

Corona Treater: available upon request

Tension Control: fully automatic constant tension

Machine Control: PLC & HMI
